LLMNR_NBT NS Poisoning

LLMNR

What is LLMNR?

A way to resolve hostnames on the same LAN when DNS is not available.

• A host queries the local DNS server for a particular hostname

• The DNS server responds NXDOMAIN meaning the hostname was not found

• The host then sends a broadcast on the link-local multicast address to ask its fellow LAN members if they know

By default, Windows systems use the following priority list while attempting to resolve name resolution requests through network based protocols:

1. DNS

2. LLMNR

3. NBNS

Which means if the resolution using DNS doesn't fail, the client will probably not try to resolve via LLMNR or NBT-NS.

Flaw explained

LLMNR is a layer-2 broadcast, all hosts on the LAN are going to receive it. That means that an attacker with access to the LAN is going to be able to intercept this broadcast and reply to the broadcast with a spoofed address.

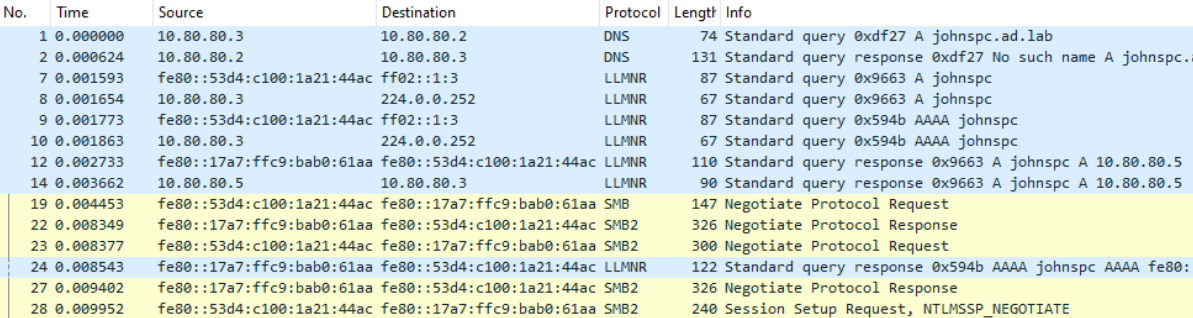

Wireshark Capture

Wireshark Analysis

• Facts to Know

  • 10.80.80.2 is the Domain Controller and DNS resolver

  • 10.80.80.3 and fe80::53d4:c100:1a21:44ac are the SMB client's IPv4 and IPv6 (link-local) addresses

  • 10.80.80.5 and fe80::17a7:ffc9:bab0:61aa are Kali's IPv4 and IPv6 (link-local) addresses

• Traffic Analysis

  • Frame 1 shows the SMB client asking the DNS server what is the IP address for johnspc.ad.lab

  • Frame 2 shows the DNS server responding that the hostname doesn't exist

  • Frames 7-10, show the SMB client send a LLMNR broadcast for a A (IPv4) and AAAA (IPv6) lookup for the hostname, johnspc

  • Frames 12 & 14 are responder running on Kali spoofing that johnspc is at 10.80.80.5 -- where 10.80.80.5 is Kali's IP address.

  • Frames 19, 22, 23, 27, and 28 show the SMB client establishing an SMB session with Kali's IPv6 address

Exploitation

Capturing NetNTLMv2 Hashes

Using a tool like responder, the attacker can act as a man-in-the-middle to achieve multiple objectives:

• Capture LLMNR broadcasts on the LAN

• Spoof the IP address of invalid hostnames

• Host a false SMB server to which clients will connect and reveal their NetNTLMv2 hashes

Relaying NetNTLMv2 Hashes

The attacker can turn this attack up a notch by coupling responder with other tools, such as ntlmrelayx.

• ntlmrelayx will be hosting a few of the false servers, so they should be disabled in responder

• Then, responder spoofs the IP address for the invalid hostname

• The client connects and ntlmrelayx passes the captured NetNTLMv2 hashes around the network to see what other servers / shares scan be accessed with this credential

Mitigations

LLMNR Poisoning

Disable LLMNR as a protocol on the network

NetNTLMv2 Relaying

Enable and require SMB signing on all Windows hosts

Attack

responder

GitHub - lgandx/Responder: Responder is a LLMNR, NBT-NS and MDNS poisoner, with built-in HTTP/SMB/MSSQL/FTP/LDAP rogue authentication server supporting NTLMv1/NTLMv2/LMv2, Extended Security NTLMSSP and Basic HTTP authentication.GitHub

# Using -v with responder allows for continuous display of hashes
sudo responder -I $iface -dvw

Now you should see some hashes (NTLMv2) captured. The captured hashes are output into the logs file of Responder (/usr/share/responder/logs). At this point, you have two options, either relay the hash to try and have an open session or you can take the hash and try to crack it offline by running hashcat on it using the following command (depending on where you're running it, its best to run it on your host system) :

hashcat -m 5600 hashes.txt dictionary.txt
